In wind blade web bonding, small gaps rarely look dramatic at first. Yet they can reduce stiffness, shorten fatigue life, and create hidden quality risk.

That matters because the shear web carries major loads inside the blade. If the bond line is uneven, stress stops spreading the way designers expect.

From a project perspective, this is not only a materials issue. It is also a process control, tolerance, inspection, and repair issue.

In practice, most wind blade web bonding failures do not begin with one dramatic mistake. They start with a chain of small deviations.

This article explains the most common gaps, why they appear, and what teams can do to improve wind blade web bonding quality before defects become structural problems.

Why gap control matters in wind blade web bonding

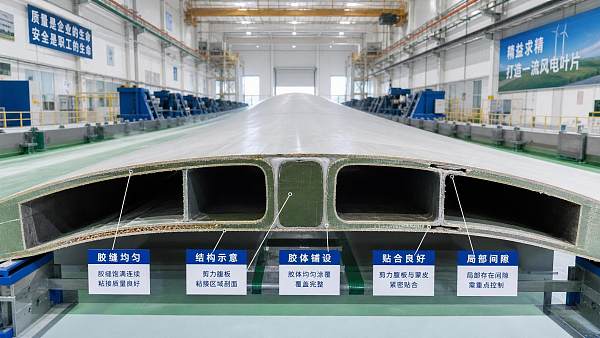

A web bond is designed to transfer load between the shell and the shear web. The adhesive must bridge geometry variation while keeping stable thickness.

When a local gap becomes too large, the adhesive may sag, trap air, or cure with poor internal cohesion. All three weaken wind blade web bonding.

When the gap becomes too small, squeeze-out can reduce effective bond area. That creates another route to weak strength and poor fatigue behavior.

This is why bond line thickness is never just a drawing detail. It affects wet-out, cure profile, stress distribution, and long-term durability.

In large blades, even modest dimensional drift can multiply across length. A few millimeters of inconsistency can turn into recurring wind blade web bonding defects.

The most common gaps that weaken web bonding strength

The most frequent wind blade web bonding gaps usually fall into five categories. Each has a different root cause and needs a different control method.

1. Oversized local bond gaps

These appear where shell curvature, web dimensions, or fixture alignment drift out of tolerance. The adhesive then spans more distance than intended.

If the gap is too wide, the bead may not stay centered. Air pockets become more likely, especially near transitions or blade root areas.

2. Undersized gaps with excessive squeeze-out

Some teams focus only on closing the web tightly. That can backfire when pressure pushes adhesive away from critical sections.

The result is a thin, starved bond line. In wind blade web bonding, thin spots often become crack initiation zones under cyclic loading.

3. Intermittent gaps along the bond path

These are especially difficult because they are not continuous. One section looks acceptable, while the next shows voiding or incomplete contact.

Intermittent defects often come from uneven adhesive laydown, unstable dispensing pressure, or inconsistent substrate preparation.

4. Edge gaps and corner voids

Corners are harder to wet out than flat surfaces. If bead geometry is wrong, corners can trap air before compression is complete.

These edge defects may look minor, but they can allow moisture entry and gradually undermine wind blade web bonding durability.

5. Gaps created by surface contamination

Dust, release agent residue, peel-ply variation, and moisture can stop full contact even when geometry is correct.

In that case, the issue is not visible spacing alone. It is a hidden interface gap that still weakens wind blade web bonding strength.

What causes these wind blade web bonding gaps

Gap formation usually comes from interaction between design, materials, tooling, environment, and operator method. Rarely is one variable acting alone.

More clearly, wind blade web bonding gaps tend to appear when tolerance capability is lower than process complexity.

Dimensional variation

Blade shells and webs are large composite structures. Small laminate thickness changes can shift fit-up conditions across long distances.

Adhesive rheology mismatch

If viscosity is too low, the bead may slump before joining. If it is too high, wetting can suffer and trapped voids can remain.

Poor dispensing consistency

Flow fluctuations, bad static mixing, bead interruptions, and wrong nozzle positioning all create local bond line variation.

Unstable assembly timing

Open time matters. If joining is delayed, the bead skin can form and reduce intimate contact during wind blade web bonding.

Surface preparation drift

A surface may pass visual inspection but still fail adhesion requirements. That is common when cleaning and abrasion standards are poorly defined.

How these defects affect structural performance

Not every gap leads to immediate failure. The bigger concern is how repeated load cycles amplify a local weakness over time.

In wind blade web bonding, the typical damage sequence starts with poor stress transfer. Then microcracks appear, followed by debond growth.

The blade may still pass early checks, which is why these defects are easy to underestimate during production release.

Once fatigue damage spreads, repair cost rises sharply. Downtime, scrap exposure, and warranty risk also move in the wrong direction.

Typical consequences include:

• Lower shear transfer efficiency
• Reduced fatigue resistance
• Greater moisture ingress risk
• More repair work during final inspection
• Higher probability of long-term field claims

Practical ways to reduce gaps in wind blade web bonding

The strongest improvements usually come from combining material selection with tighter process discipline. Focusing on only one side is rarely enough.

For teams managing scale-up or quality recovery, the following actions are usually the most effective.

1. Map actual gap variation before changing the adhesive. Real geometry data should guide bond line design and bead size.
2. Match adhesive rheology to vertical hold, wetting demand, and expected tolerance stack-up.
3. Standardize dispensing parameters, including pressure, mix ratio, nozzle height, travel speed, and bead profile.
4. Control open time tightly. Bonding windows must reflect factory temperature, humidity, and part handling pace.
5. Define measurable surface preparation criteria instead of relying on visual judgment alone.
6. Use in-process inspection for bead continuity, squeeze-out pattern, and web positioning before cure is complete.
7. Create a clear repair limit policy. Teams need to know when local repair is acceptable and when rejection is necessary.

A simple control table for web bonding risk review

What better decisions look like

The strongest wind blade web bonding programs do not treat gaps as isolated defects. They treat them as process signals.

That shift changes decision quality. Instead of repairing the same symptoms, teams start controlling the variables that create them.

A useful next step is to review three things together: real fit-up data, adhesive behavior under production conditions, and inspection criteria at the bond line.

When those three align, wind blade web bonding becomes more predictable. Strength improves, rework falls, and long-term reliability becomes easier to defend.

For any blade program under cost or delivery pressure, that is usually where the most practical value starts.
